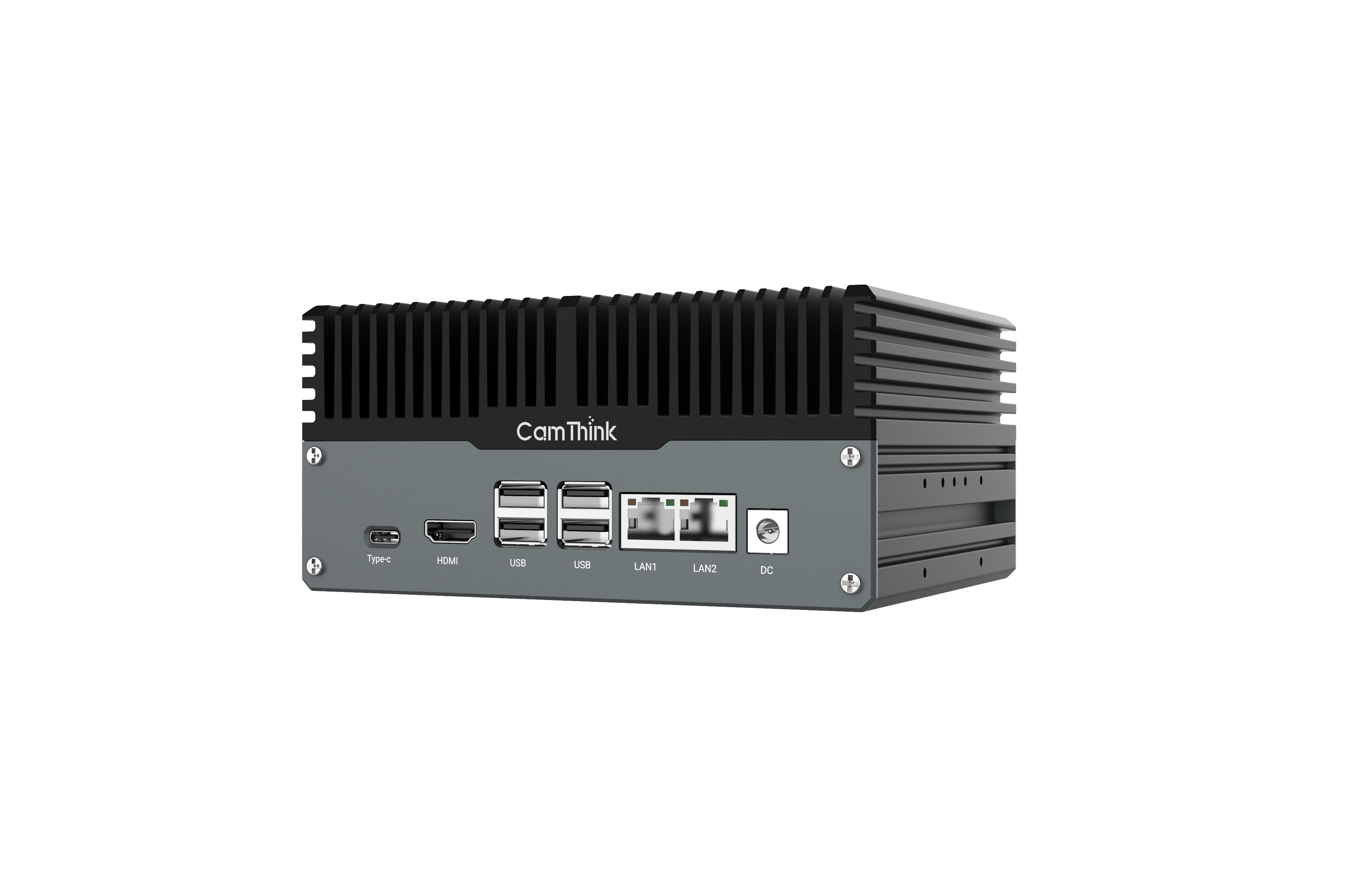

Product Information
Product Introduction
CamThink NeoEdge NG4500 series has powerful edge computing capabilities and integrates NVIDIA® Jetson Orin™ NX or Nano core modules, which can fully unleash the computing performance of Jetson Orin™. It achieves up to 1.7 times performance boost compared with the previous generation product that does not support NVIDIA® Super Developer Kit. In addition to the support of general visual AI application, it can also efficiently run various mainstream generative AI models, including Text Large Language Models(LLMs), Vision Large Language Models(VLMs), and Multi-modal Large Language Models(MLLMs). Additionally, NG4500 supports a variety of physical interfaces and scalable communication modules (Wi-Fi/4G/5G), and can flexibly adapt to inter-device communication and edge-to-cloud collaborative communication in various edge computing application scenarios such as Robotic systems, Smart Vehicle Terminals, Smart Manufacturing Computing Hub, and Edge AI Computing Gateway. The industrial-grade design of NG4500 ensures that the equipment operates robustly ranging from -25°C to 60°C with outstanding reliability, and can meet the needs of diverse scenarios.
NVIDIA® Super Performance Boost
NeoEdge NG4500 series supports NVIDIA® Super Mode, it achieves significant performance improvement in LLMs, VLMs, and Visual Transformer(ViTs), access more specifications Jetson Orin Nano Super Developer Kit | NVIDIA.
Large Language Models
LLM performance improvement on NVIDIA Super Developer Kit
Vision Language Models
VLM performance improvement on NVIDIA Super Developer Kit
Vision Transformers
ViT performance improvement on NVIDIA Super Developer Kit
High-performance AI Platform
CamThink NG4500 series supports 20-157 TOPS computing power, and the GPU can be equipped with up to 1024 CUDA cores and 32 Tensor cores. It supports a complete set of JetPack 6.0 development kit, pre-installed CUDA, TensorRT and other tool chains, and is compatible with mainstream AI frameworks. Suitable for edge AI application scenarios such as computer vision, robots, and edge computing gateways.
- Incremental AI power：
- Standard mode: 20 TOPS（NG4510）→ 100 TOPS（NG4521）.
- SUPER mode（INT8）: 34 TOPS → 157 TOPS.
- Heterogeneous computing architecture (NG4521):
- GPU: 1024 NVIDIA® CUDA® cores + 32 Tensor cores.
- CPU: Octa-core Arm® Cortex®-A78AE v8.2（64-bit）@ 2.0GHz.
- Memory: LPDDR5 16GB, bandwidth up to 102GB/s.
- Pre-install NVIDIA® JetPack 6.0+ SDK, including the complete development environment of CUDA, cuDNN, TensorRT, DeepStream, etc. For system features, see Jetpack SDK 6.0. For system programming tutorials, please refer to the「System Programming Guide」.
- Supports various mainstream AI frameworks and inference service deployments: TensorFlow/Keras, PyTorch, ONNX Runtime, TensorRT, Ollama, llama.cpp, VLLM, ultralytics, etc.
Rich Hardware Interfaces
NG4500 is equipped with rich interfaces, meeting the various requirements in industrial and edge computing scenarios, tutorial guide is available here.「Interface Configuration Guide」
- Gigabit network connection: Equipped with dual Gigabit Ethernet ports, to ensure stable and reliable network communication, and capable of handling up to 16 video streams encoding/decoding simultaneously (only in specific models), suitable for industrial communication and edge computing applications.
- Rich USB interfaces: Equipped with 4×USB 3.1 + 1×Type-C (USB 3.2) interfaces, which can achieve high-speed data transmission and support USB peripherals such as external cameras and storage devices.
- Industrial-grade communication protocol: Built-in RS232, RS485, CAN interfaces, supports seamless connection with various industrial-grade equipment. It has strong anti-interference ability and is suitable for complex EMC environments with strict communication requirements.
- Automation control application: equipped with DI/DO interface, supports digital signal input and output, and can realize automatic control and logical judgment.
- HDMI output：HDMI output，supports 4K display.
- 3.5mm audio interface：supports microphone input, voice output.
- 6×SMA antenna interface: supports external high-gain antenna.
Durability and Robustness
Designed for harsh industrial environments, the edge computing box complies with industrial-grade manufacturing standards to ensure long-term stable operation under harsh conditions. For device installation and deployment instructions, see「Quick Start」.
- Industrial-grade power supply design: wide voltage input (12V-36V DC), adaptable to voltage fluctuations in industrial sites, peak power of 120W, capable of data-intensive computation. Built-in with multiple-layer protection circuits (overvoltage/overcurrent/reverse connection protection), stable support for non-stop operation in SUPER mode.
- Compact and sturdy structure: NG4500 measures at 160mm × 125mm × 75mm with metal casing. It supports multiple installation methods such as desktop, wall mounting, and DIN-rail installation.
- Environmental adaptability: It adopts a fanless design for passive cooling. Wide temperature supported. Operating temperature ranges from -25°C to 60°C, storage temperature ranges from -40°C to 85°C, adaptable to various industrial environments.
Product Information
Product Specification
NG4500 series edge AI box and carrier board specifications are shown below:
| Features | NG4510/NG4511 | NG4520/NG4521 | ||
|---|---|---|---|---|
| NG4510 | NG4511 | NG4520 | NG4521 | |
| NVIDIA® Jetson Module | Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | Jetson Orin NX 8G | Jetson Orin NX 16G |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS |
| AI Performance (SUPER) | 34 INT8 TOPs | 67 INT8 TOPs | 117 INT8 TOPs | 157 INT8 TOPs |
| GPU | 512 NVIDIA® CUDA® cores 16 Tensor cores | 1024 NVIDIA® CUDA® cores 32 Tensor cores | ||
| CPU | 6-core Arm® Cortex® A78AE (64-bit) HMP 2x Clusters | 8-core Arm® Cortex® A78AE v8.2 (64-bit) HMP 2x Clusters | ||
| DRAM SIZE | 4G | 8G | 8G | 16G |
| DRAM BW | 64-bit LPDDR5 DRAM 34 GB/s | 51 GB/s | 128-bit LPDDR5 DRAM 3200 MHz 102 GB/s | ||
| OS | Linux | |||
| Ethernet | 2 x RJ45 (1000Mbps Ethernet) | |||
| USB | 4 x USB3.1, 1 x Type-C 4x Type-A(USB3.1), 1x Type-C(USB3.2) | |||
| I/O Connector | 4 x DI, 4 x DO, 4 x GND_DI, 4 x GND_DO, 1 x CAN, 1 x RS232, 1 x RS485, 1 x DC 5V Power | |||
| HDMI | 1 x HDMI | |||
| Audio | 1 x Audio Jack (Mic Input + Audio L/R output) | |||
| SIM Card Slot | 1 x Nano SIM Slot | |||
| RTC | Support CR2032 RTC Battery | |||
| FAN | 1 x Fan Connector (5V PWM) | |||
| M.2 Key B | M.2 Key B 2242/2252 support 4G/5G | |||
| M.2 Key E | M.2 Key E 2230 support Wi-Fi/Bluetooth | |||
| Storage | 1 x M.2 Key M PCIe4 SSD (NVMe 2280 SSD 128G/256G/512G/1T Optional) 1 x M.2 Key M PCIe1 SSD | |||
| Power Supply | DC input 12V-36V, Peak Power 120W | |||
| LED Indicator | 1 x Power LED, 1 x Wi-Fi LED, 1 x 4G LED, 1 x Ethernet LED | |||
| Operating Temperature | -25°C to 60°C | |||
| Storage Temperature | -40°C to 85°C | |||
| Operating Humidity | 0% - 90% (non-condensing) | |||
| Dimensions | 160mm x 125mm x 75mm | |||
| Weight | 1.9Kg | |||
| Installation | Desk, Wall mounting, DIN-rail | |||
| SMA Antenna Connector | 4-6（4G+Wi-Fi with a total of 4 antenna, 5G+Wi-Fi with a total of 6 antenna） | |||
| Thermal | Fanless | |||
| Certification | CE/FCC/RoHs | |||
| Warranty | 2-year | |||

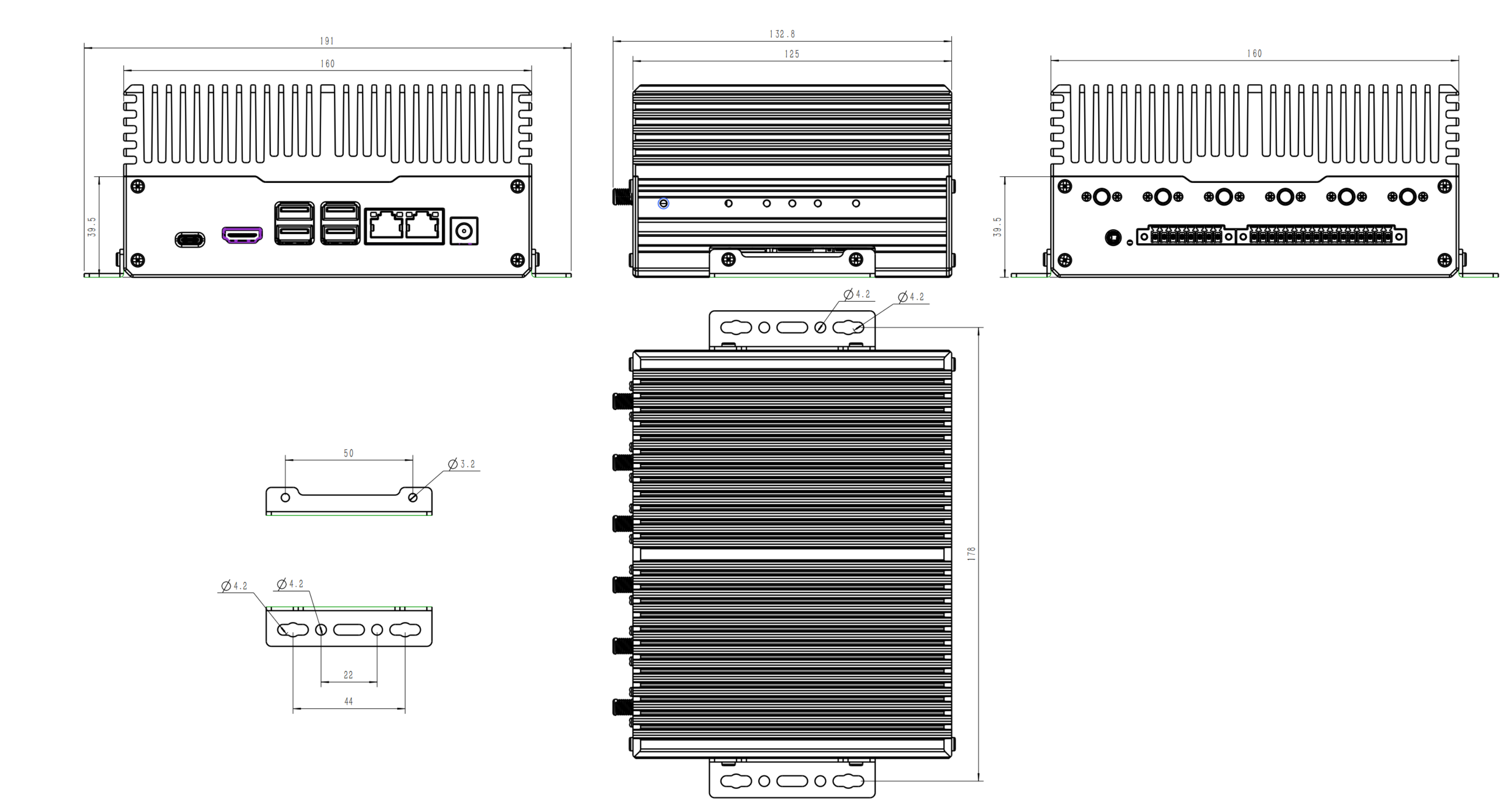

Product Dimension
Product casing and bracket dimension instruction：
Product Accessories
Standard Accessories
CamThink NeoEdge NG4500 series provides following standard accessories:
| 图片 | 名称 | 数量 | 说明 |
|---|---|---|---|

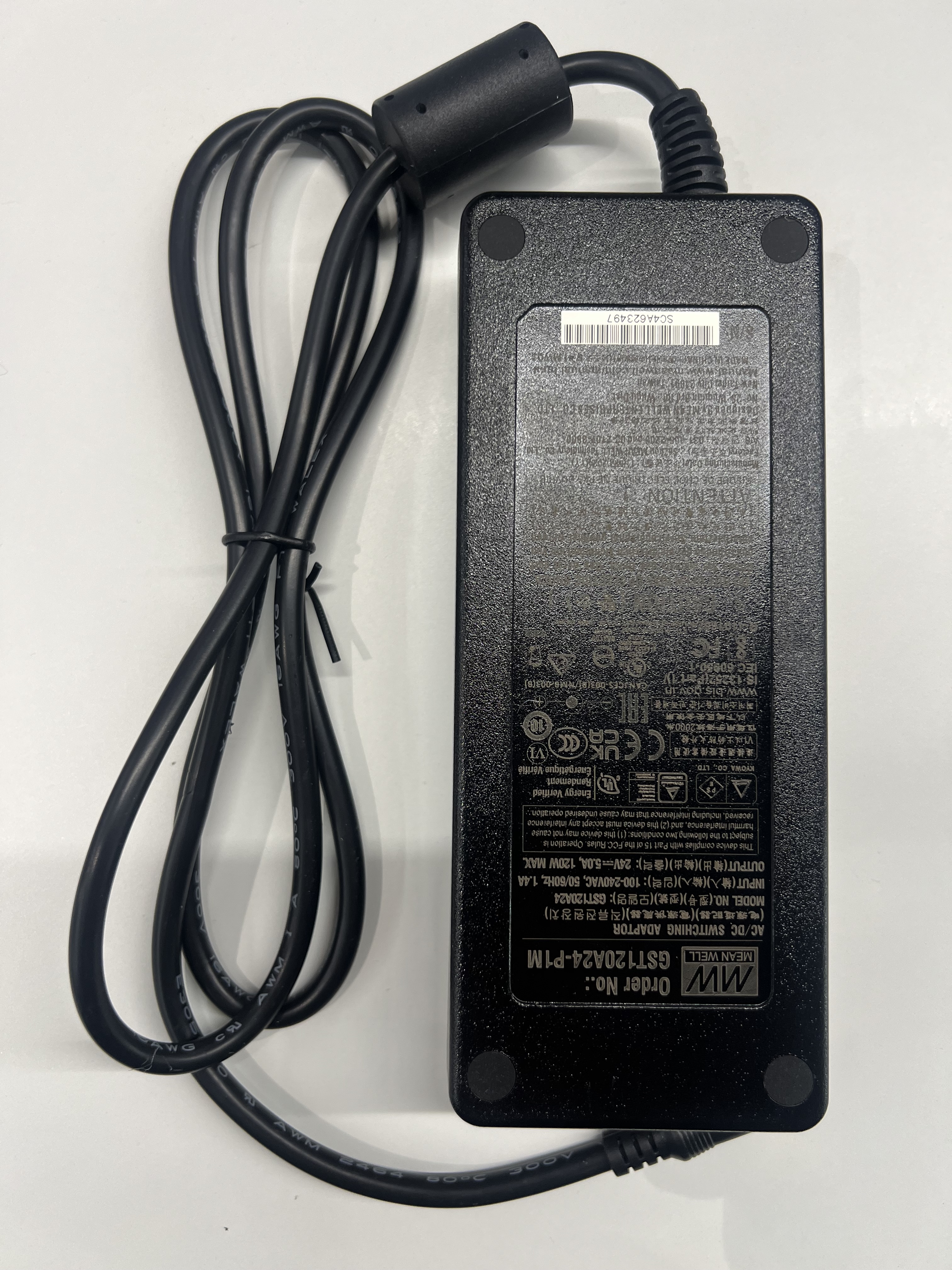

 | power adapter(optional) | 1 | input: 100-240V AC output: 12V/5A DC |

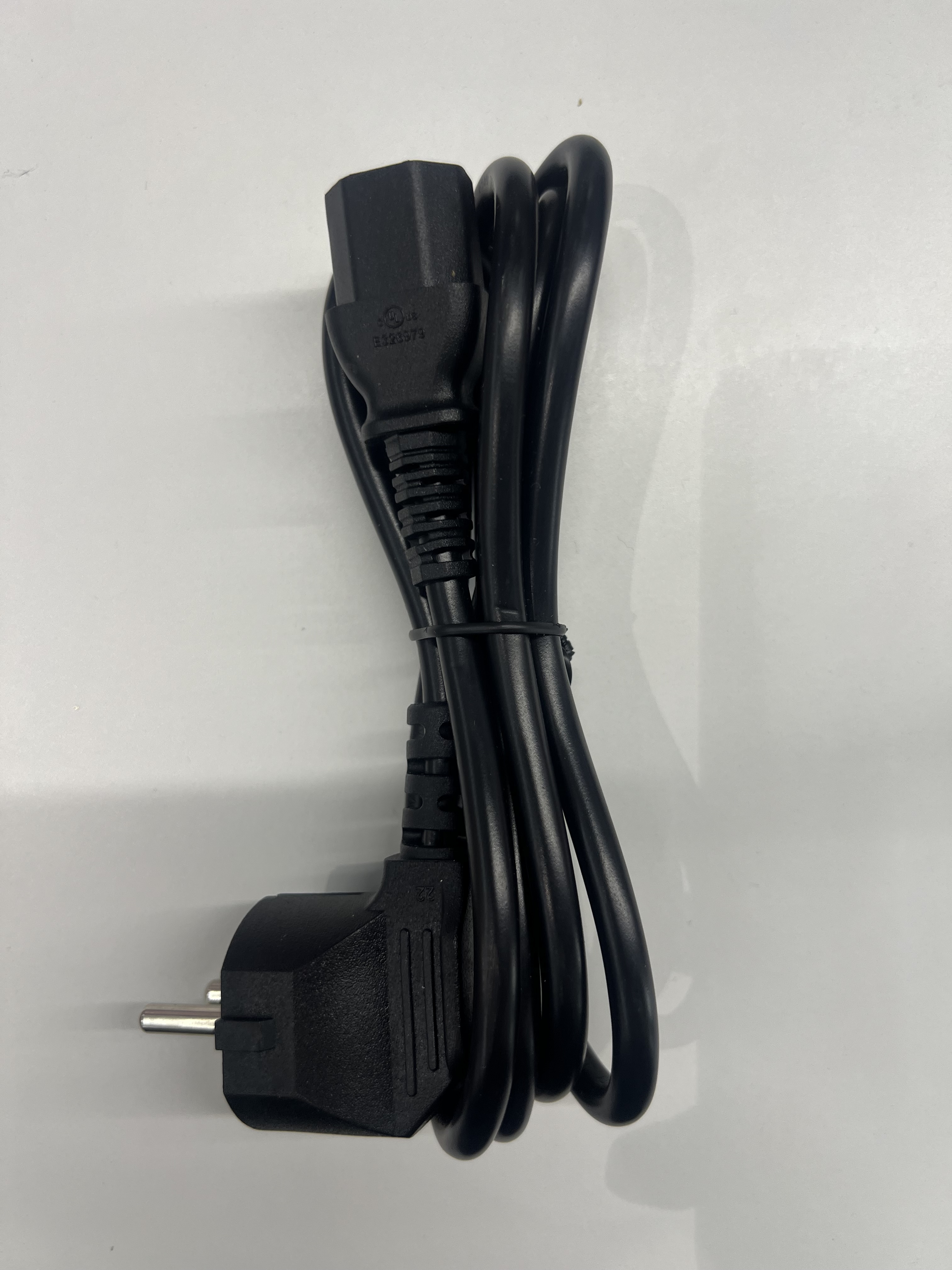

 | powercable(optional) | 1 | standard 3C power cable 1.5m, EU standard by default, other regions optional |

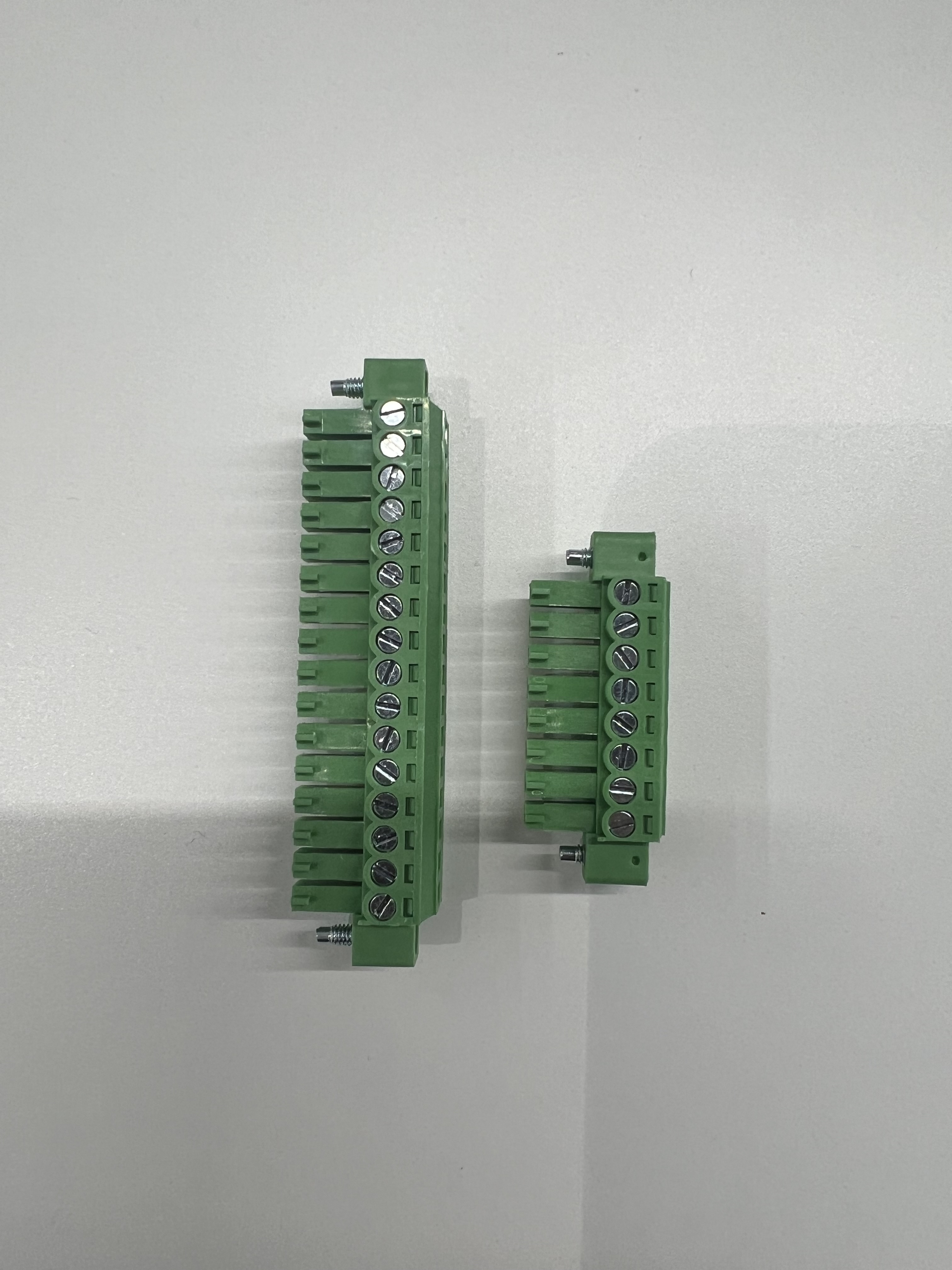

 | Industrial-grade terminal blocks (standard accessories) | 2 | 16pin male terminal connector*1、8pin male terminal connector*1 |

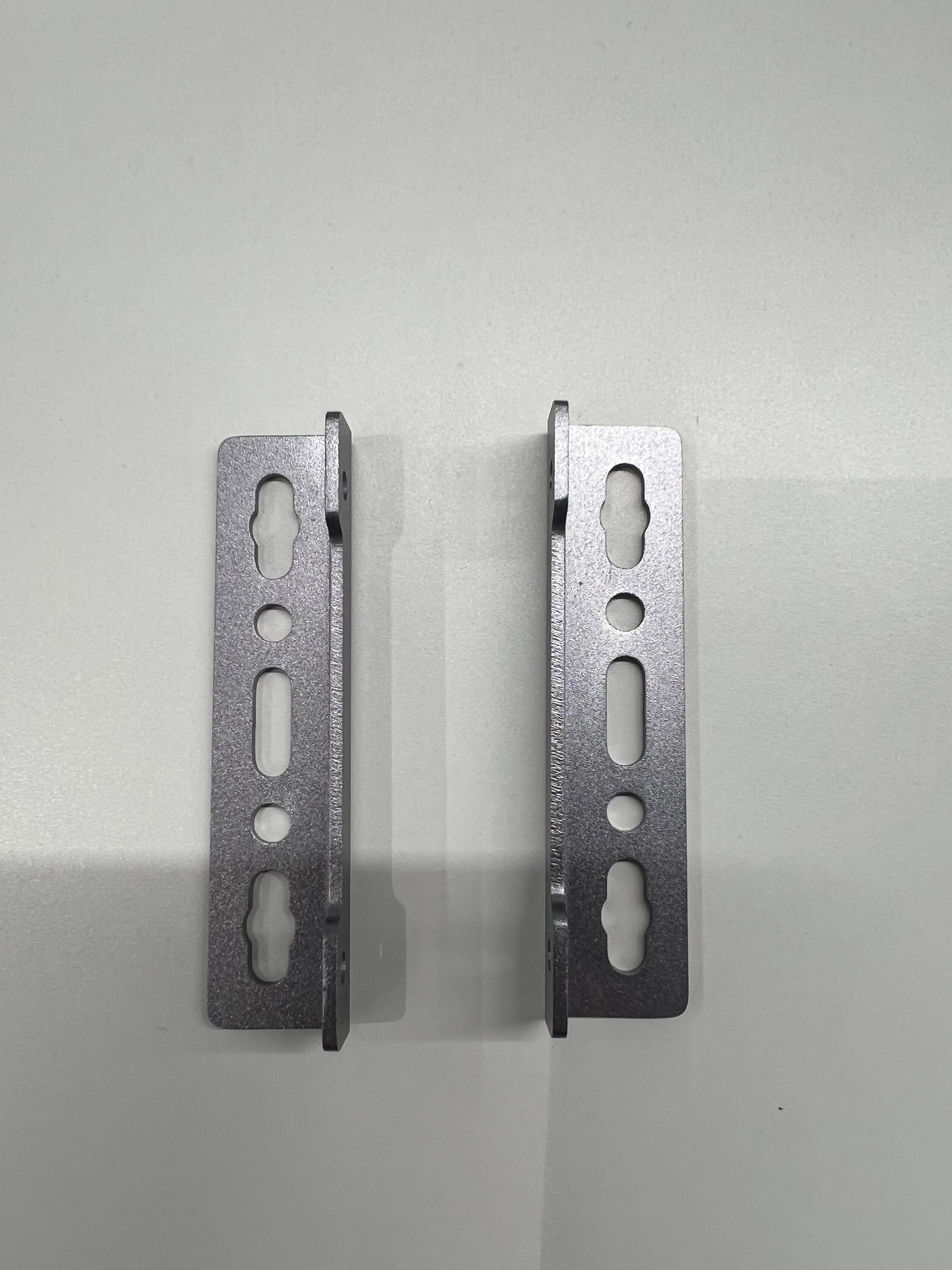

 | Mounting bracket (standard accessory) | 2 | Wall mounting brackets*2、DIN-rail bracket*1 |
Optional Accessories
CamThink NeoEdge NG4500 series offers optional accessories as follows:
| 图片 | 名称 | 数量 | 说明 |
|---|---|---|---|
 | SSD | 1 | M.2 NVMe SSD capacity 256G-1TB optional |

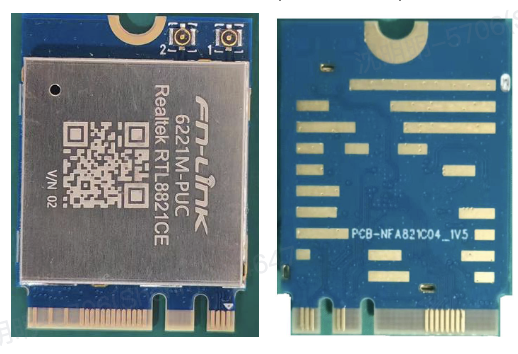

 | Wi-Fi module | 1 | 6221M-PUC dual-band Wi-Fi and bluetooth 5.0 module |

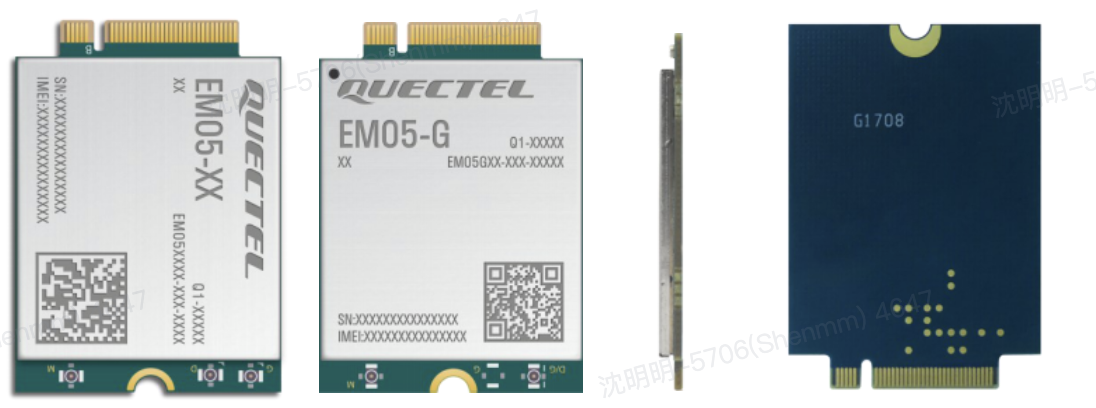

 | 4G module | 1 | Quectel EM05 EM05-G 4G M.2 module, supports Europe, America, China, Japan, Australia frequency bands. |

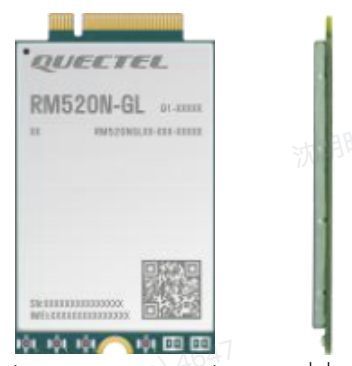

 | 5G module | 1 | Quectel RM520N-GL 5G M.2 module, supports global mainstream bands. |

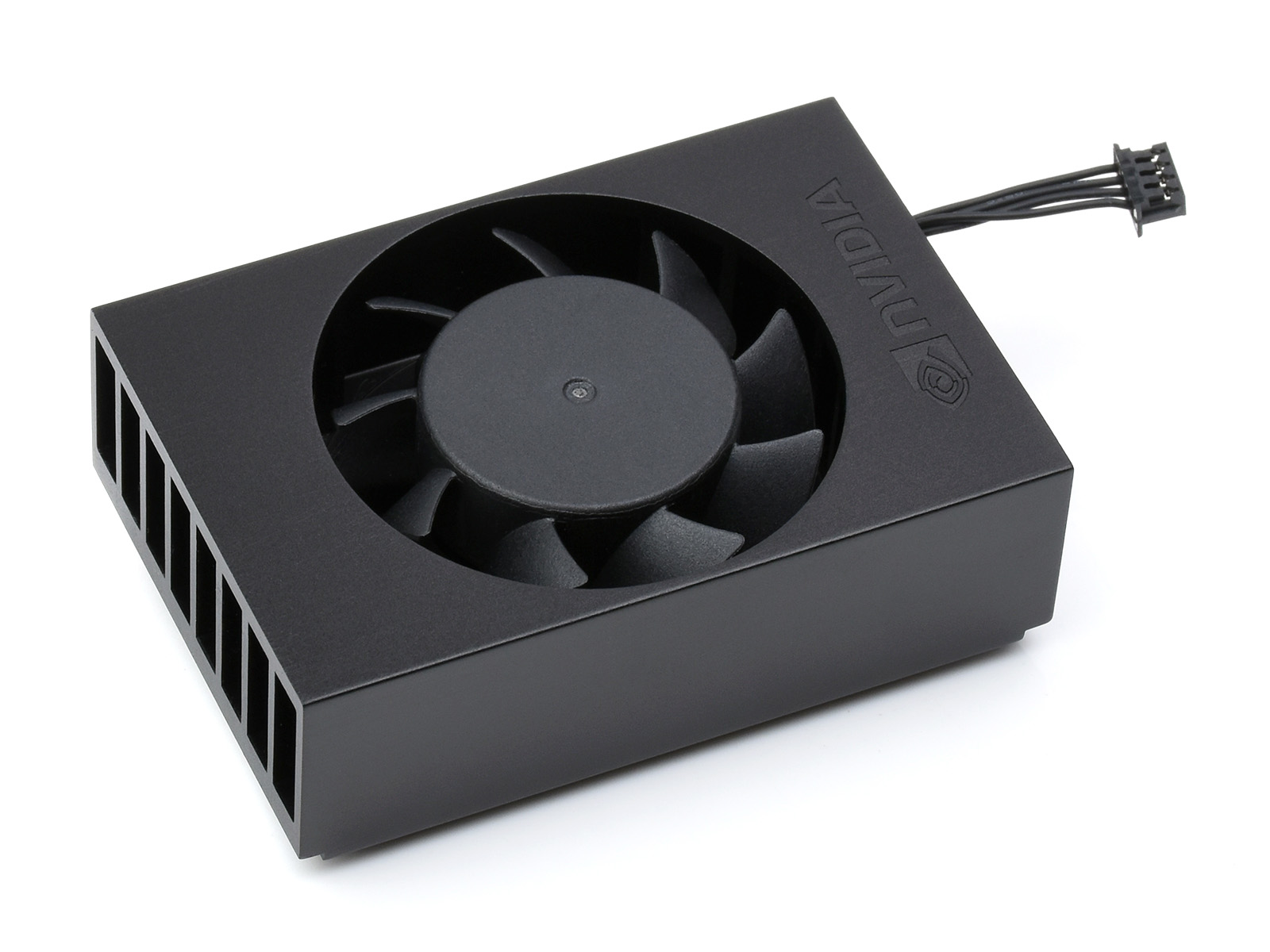

 | fan | 1 | cool fan kits, suitable for NG4500 carrier board |

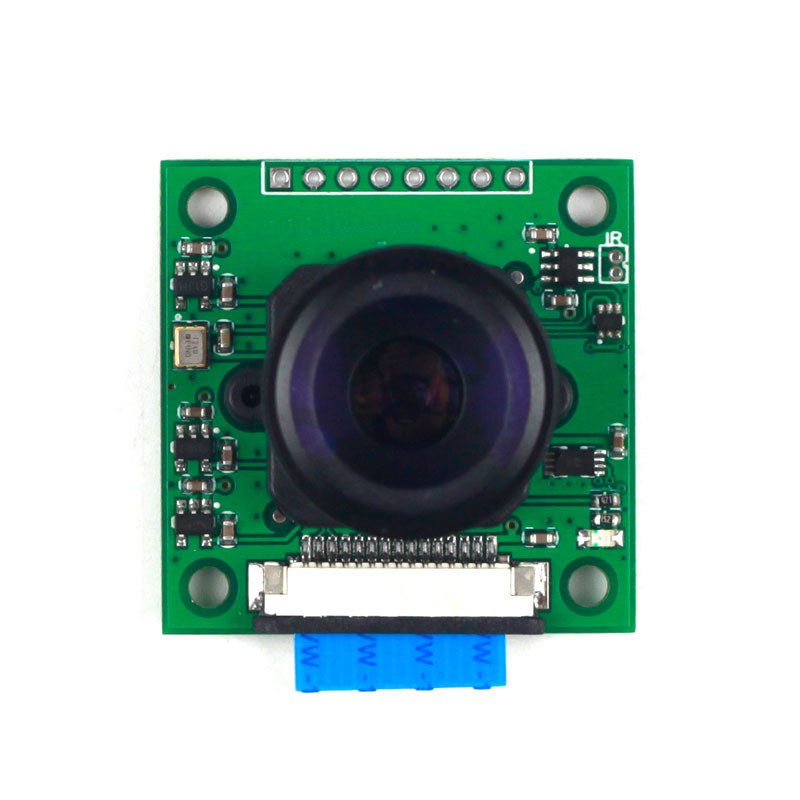

 | Raspberry Pi Camera Module 2 | 1 | SONY IMX219 3280*2464 1/4' 1.12um |

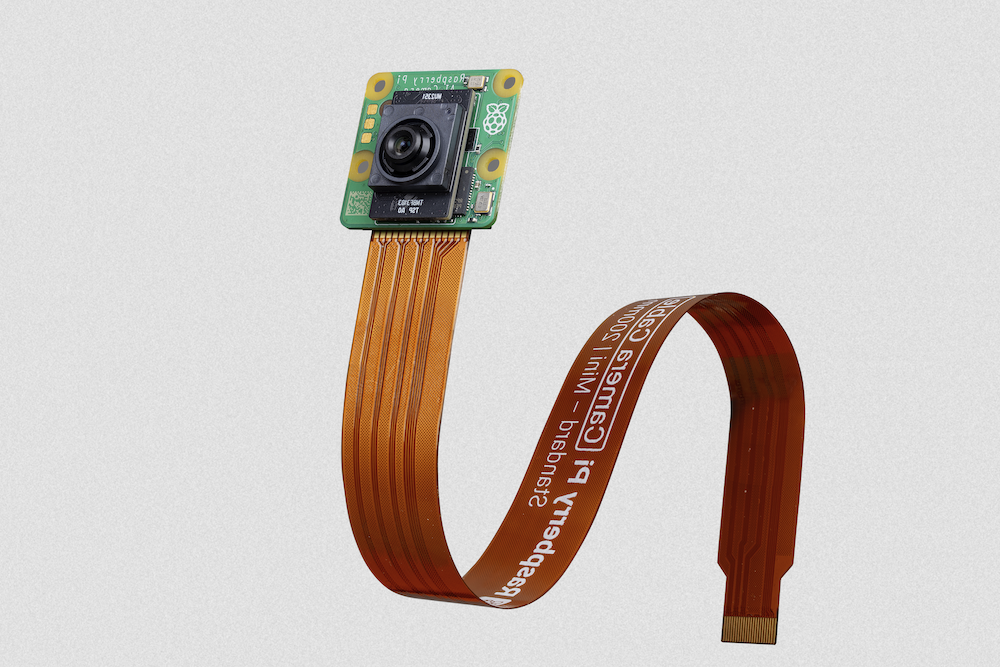

 | Raspberry Pi High Quality Camera | 1 | SC0870 Raspberry Pi M12 High Quality Camera |
Product Applications
Applicable Scenarios
NG4500 series edge computing boxes can be used in various industries with their powerful computation power and industrial-grade reliability.

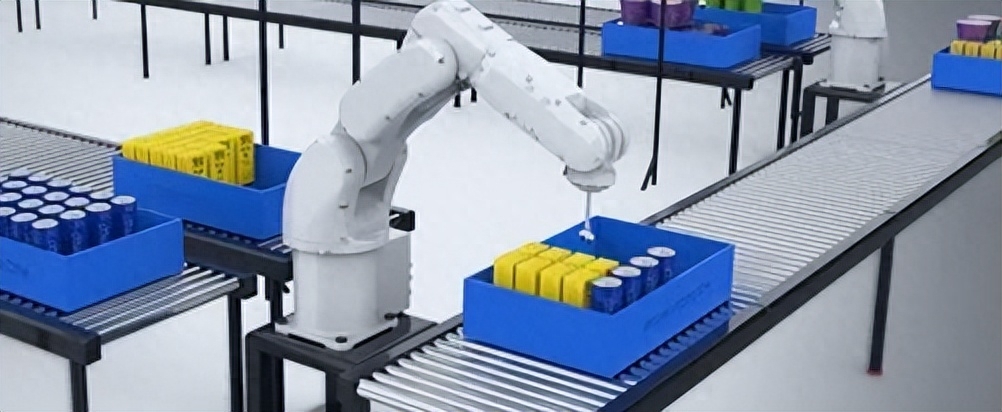

Smart manufacturing
Smart cities
Unmanned systems

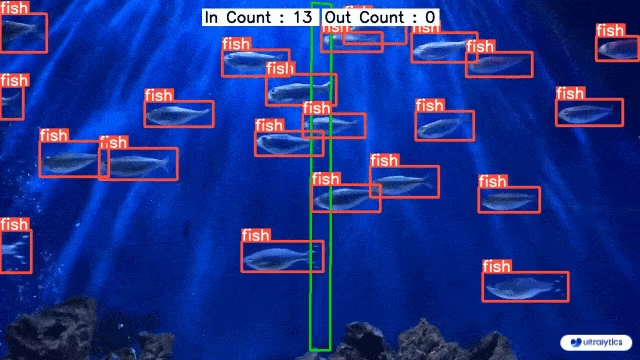

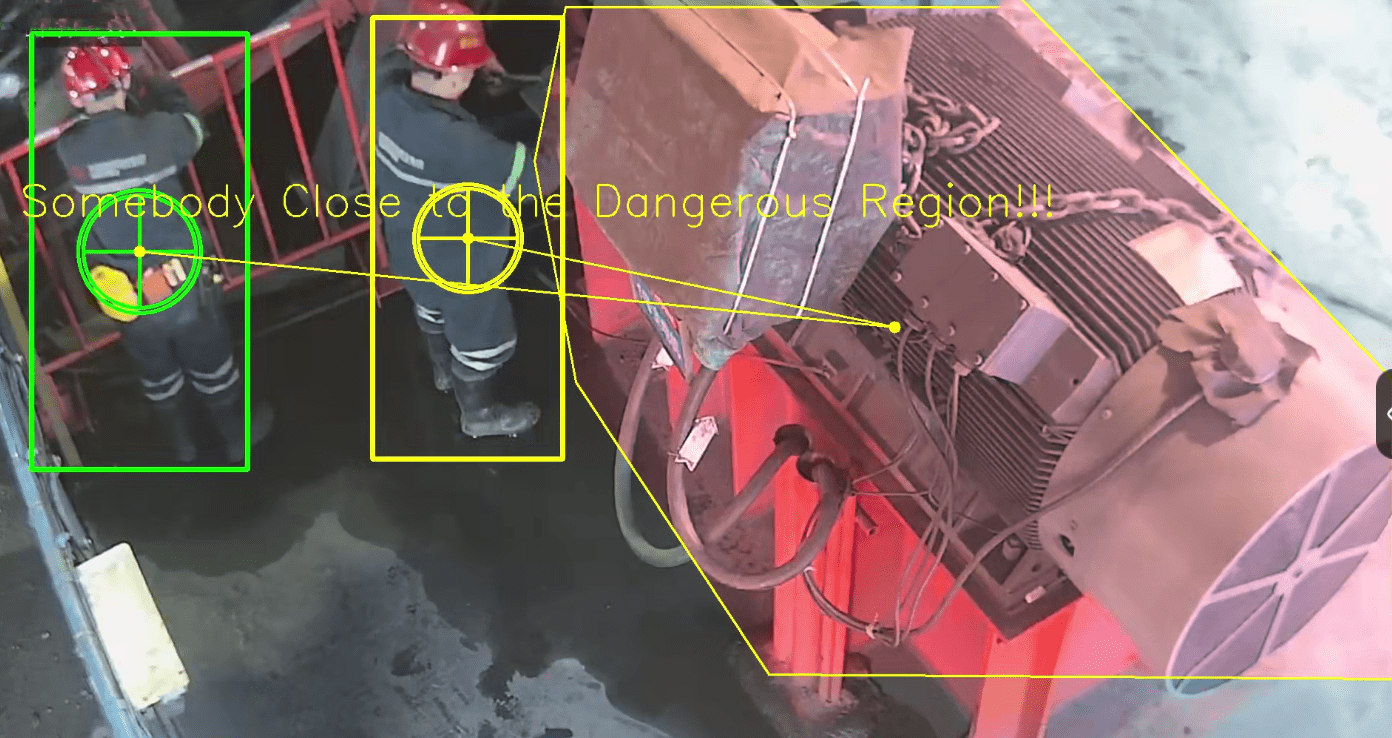

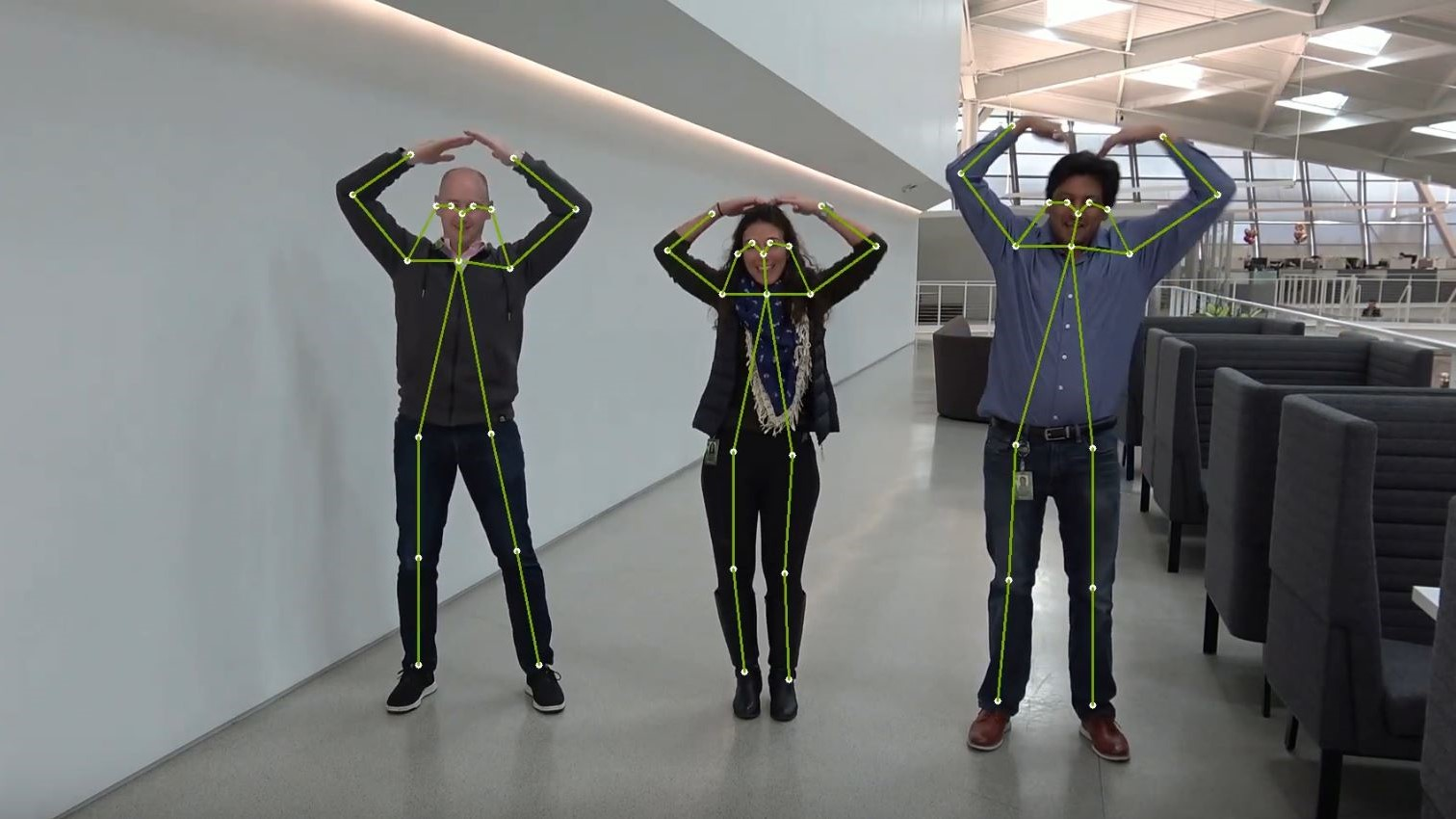

Sample of Application Engineering
NG4500 series products can be deployed in diverse scenarios, we have listed the typical use cases in the content below. Each use case is equipped with a detailed implementation guide to support the fast replication and application.
Product Documentation
Tutorial Guide
About how to quickly use NG4500 series Edge AI Box, please refer to 「Quick Start Guide」
About how to use NG4500-CB01 carrier board, and it's related hardware, and operating system development, please refer to 「Development Guide」
About NG4500 series product application guide, please refer to「Application Guide」
